Standard galvanized (Class C) diamond mesh, 1.8 m high, 75 mm block size, < 2.00 mm wire, 30 m roll, commercial quality

Description

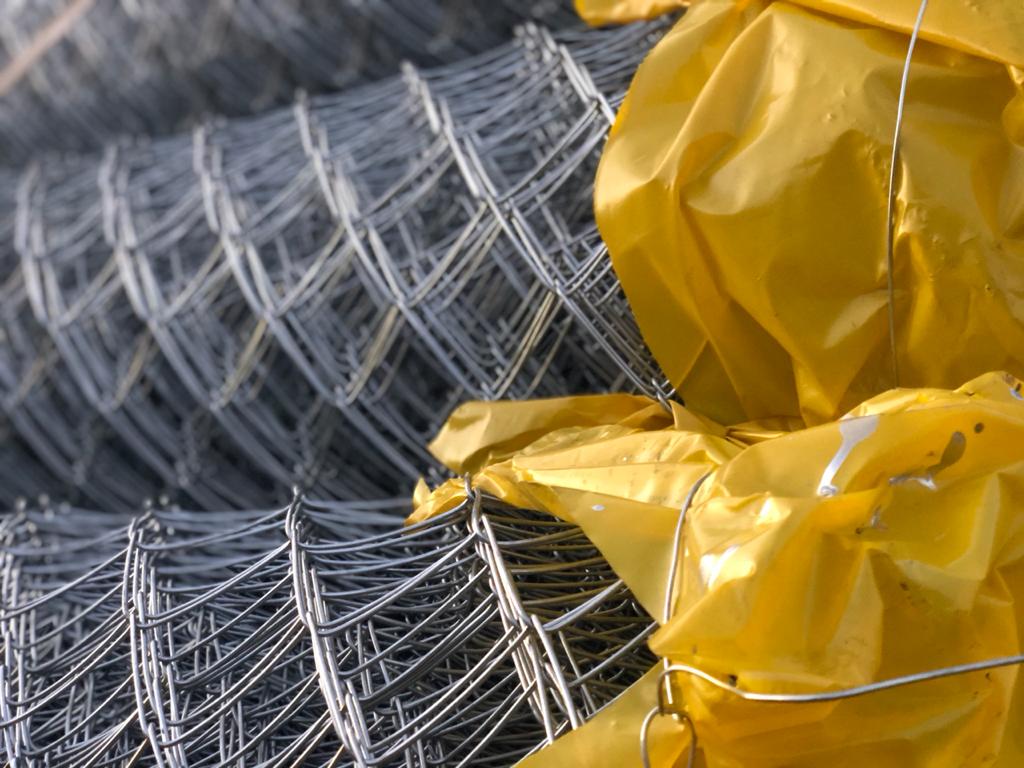

Standard galvanized (Class C) diamond mesh, 1.8 m high, 75 mm block size, < 2.00 mm wire, 30 m roll, commercial quality. Diamond mesh (chain-link) is a woven fence that follows uneven ground and is quick to put up – the go-to fence for homes, farms, schools, sports fields and industrial sites. Its 75 mm openings make an economical, general-purpose boundary fence.

Specifications

• Height: 1.8 m – for boundary, security, school and dog-run fencing
• Opening (aperture): 75 mm
• Wire: < 2.00 mm wire – commercial-quality specification
• Roll length: 30 m
• Range: economy / commercial-quality line for budget-conscious projects
• Coating: Class C standard galvanized – cost-effective for most inland applications. For coastal sites, ask about Class A heavy galvanized
• Stock code: DM180HDLG

Installation tips

Diamond mesh needs firm corner, end and gate posts braced with stays, with line posts or standards in between. Install straining wires at 600 mm vertical intervals from the bottom, then tension the mesh and tie it to the straining wires with tying wire. We supply the posts, stays, straining wire, tying wire and matching diamond mesh gates (made in-house).

Need a different size, coating or quantity? Contact our Centurion, Bloemfontein or George branch for advice and a quote. Browse more Diamond Mesh or read our technical guide.
